多奧樓層控制型電梯管理系統簡介
2017-10-28
Card-reading stop floor
一、 產品特點
Product Features

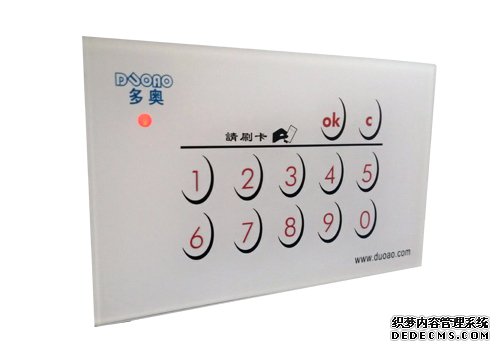

有權限的卡刷卡則登記啟動電梯簡稱刷卡直達，可選配密碼式讀頭，忘記帶卡則輸入密碼?？膳c多奧停車管理/門禁/考勤/智能通道/消費/在線巡更等智能一卡通
After a legitimate user enters an elevator,the card is just read by the reader inside the elevator,without button,and the elevator can lift the user onto the specified floor. and DUOAO parking management / access control / attendance / smart channel / consumer / Patrol and other smart card.
二、 技術參數
Perfomance parameters
1、 工作電壓：DC12V-24V/1A
2、 工作環境：-30℃-75℃
3、 通訊方式：RS485 TCP/IP CAN
4、 最大用戶數：無限制
5、 支持卡片類型：IC卡、EM卡、ID卡、T5557卡、CPU卡等
6、 支持生物識別讀頭：指紋、靜脈識別、掌紋識別、虹膜、面部識別等
7、 連接方式：無源干接點
1 ,An operating voltage: DC12V-24V/1A
2, the working environment: -30 ℃ -75 ° C
3, means of communication: RS485 TCP / IP CAN
4, the maximum number of users: unlimited
5, support the cards types: IC card, EM card, ID card, T5557 card, CPU card, etc.
6, to support biometric reading head: fingerprints, vein recognition, palm recognition, iris, facial recognition, etc.
7, the connection mode: passive dry contact

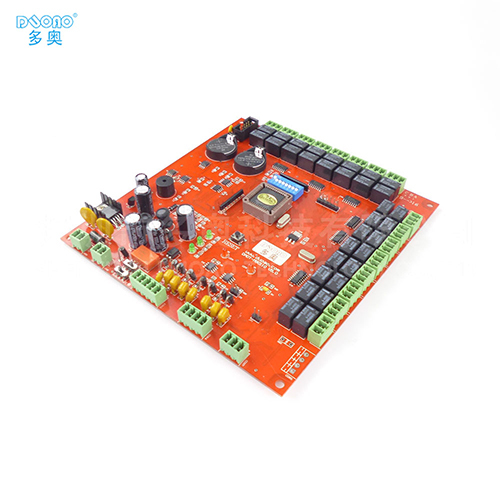

電梯觸點輸出擴展板
Output switch board
產品型號：DAIC-DT-K
Product models
規格：130*75
Size
顏色：紅
Color
